In the fast-paced environment of a modern steel plant, maximizing the availability of equipment is key to profitability. For steel ladles, which are subjected to intense thermal and chemical stress, efficient maintenance is critical. Refractory gunning mixes have become an indispensable solution for extending the life of ladle linings and minimizing downtime through rapid, effective repairs.

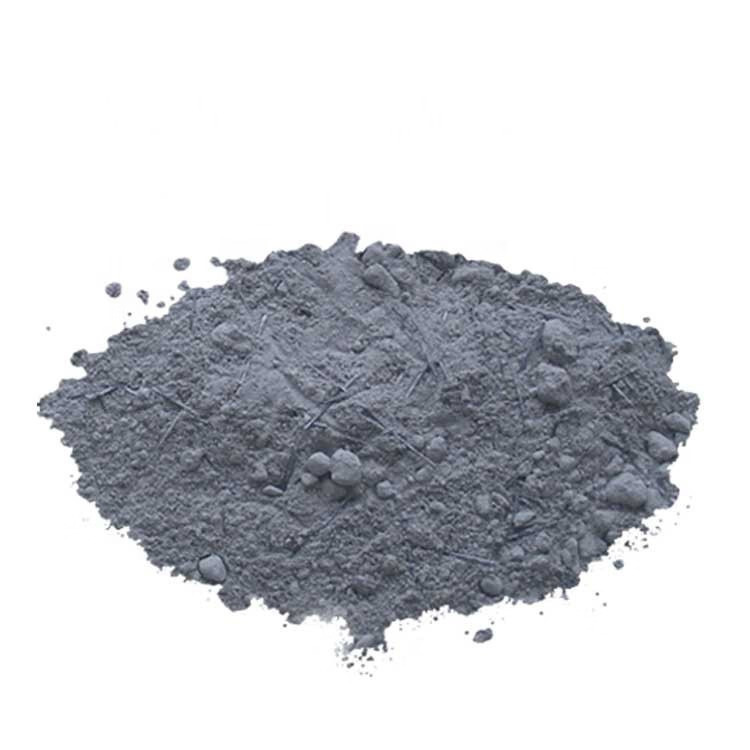

A gunning mix is a finely formulated monolithic refractory designed to be applied pneumatically using a specialized gunning machine. The dry material is transported through a hose, mixed with a small amount of water or a liquid binder at the nozzle, and then sprayed at high velocity onto the refractory surface. This process allows maintenance crews to quickly restore worn areas of the ladle lining, often while the ladle is still hot.

The Advantages of Gunning for Ladle Repair

The gunning method offers several distinct advantages over traditional repair techniques like bricklaying or manual patching.

• Speed and Efficiency: Applying a gunning mix is significantly faster than cutting out and replacing worn brickwork. A repair that might take hours with brick can often be completed in a fraction of the time with gunning.
• Hot Repair Capability: Many ladle gunning mixes are specifically designed for hot application. This is a crucial advantage, as it allows repairs to be made between heats with minimal cooling of the ladle, saving enormous amounts of time and the energy required for preheating.
• Seamless, Monolithic Patches: The sprayed material adheres to the existing lining and forms a continuous, joint-free patch. This eliminates the joints inherent in brick repairs, which are often weak points that are susceptible to slag and steel penetration.
• Targeted Repairs: Gunning allows for the precise application of material exactly where it is needed, making it ideal for repairing localized high-wear zones, such as the slag line.

Key Properties of a High-Quality Ladle Gunning Mix

To be effective, a ladle gunning mix must be engineered with several key properties:

• Excellent Adhesion: The mix must have high “stickability” to ensure it adheres well to the hot refractory substrate with minimal material loss from rebound.
• Low Rebound and Dust: A well-designed mix minimizes material waste and creates a safer working environment.
• Good Chemical and Erosion Resistance: The chemistry of the mix (e.g., high alumina or alumina-magnesia) must be chosen to resist corrosion from the specific slag composition in the ladle.

By enabling proactive and rapid maintenance, gunning mixes allow steel plants to safely extend the campaign life of their ladles, resulting in fewer relines, lower refractory consumption per ton of steel, and improved operational efficiency.

Your Partner for Ladle Maintenance Solutions

At Pennekamp Middle East, we offer a wide range of high-performance monolithic refractories, including advanced gunning mixes designed for ladle maintenance. Our products are formulated for excellent adhesion, high durability, and rapid application to help you maximize your ladle availability.

Contact us today to find the right gunning mix solution for your specific ladle operating conditions.
