The steel ladle is a workhorse of modern metallurgy, a critical vessel where steel cleanliness and temperature are precisely controlled before casting. The integrity of its refractory lining is paramount to achieving these goals. While traditional brick linings have been the standard for decades, advanced monolithic materials like High Aluminum/Mullite Castables offer a powerful, modern alternative that delivers both superior performance and installation efficiencies.

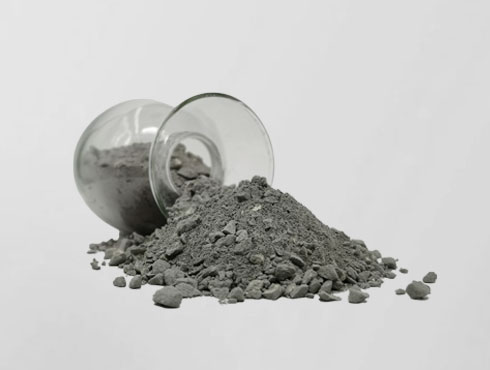

A castable refractory is a type of unshaped or monolithic material, similar to high-tech concrete. It is supplied as a dry powder, mixed with water on-site, and then poured or cast into place to form a solid, joint-free lining. The high performance of these specific castables comes from their expertly engineered composition, which is rich in high-purity alumina and the mineral mullite.

The Mullite Advantage: The Secret to Stability and Strength

Mullite (3Al₂O₃·2SiO₂) is a synthetic mineral highly prized in the refractory industry for its exceptional properties at high temperatures. Its inclusion in a ladle castable imparts several key benefits:

• Excellent High-Temperature Strength: Mullite is renowned for its outstanding resistance to creep, which is the slow deformation of a material under load at high temperatures. This ensures the castable lining remains structurally stable throughout its campaign life.
• Superior Thermal Shock Resistance: The unique interlocking, needle-like crystal structure of mullite, combined with its low coefficient of thermal expansion, makes it extremely resistant to the thermal shocks of a ladle’s cycle—from preheating to tapping and casting.
• Good Chemical Stability: Mullite is chemically stable and offers good resistance to corrosion from the chemically aggressive slags found in many ladle furnace operations.

The Benefits of a Seamless, Castable Lining

Beyond the superior material properties, the castable form itself offers significant advantages over traditional brick-and-mortar construction.

• A Truly Monolithic Structure: The primary benefit is the creation of a seamless, joint-free lining. A typical bricked ladle has thousands of mortar joints, which are inherent weak points that are susceptible to penetration by steel and slag. A castable lining eliminates these weak points entirely.
• Faster and More Flexible Installation: For full relines or complex repairs, casting a lining can be significantly faster and less labor-intensive than the meticulous process of bricklaying. It also allows for the easy formation of complex shapes and contours within the ladle.
• Uniform Properties: A properly installed castable lining has consistent, uniform properties throughout its structure, leading to more predictable wear patterns and performance.

By combining the inherent strength and stability of the mineral mullite with the installation advantages of a monolithic castable, High Aluminum/Mullite castables represent a state-of-the-art solution for modern ladle lining management.

Explore Advanced Monolithic Solutions with Pennekamp

At Pennekamp Middle East, we provide a comprehensive range of advanced monolithic refractories, including high-performance High Aluminum/Mullite castables. Our products are engineered to deliver superior durability, thermal stability, and ease of installation for your ladle furnace operations.

Contact our technical team today to discover how our castable solutions can enhance your ladle performance.
